7/16 DIN Male to 4.3-10 Female Low PIM Test RF Adapter DIN(M)-4.3/10(F)

7/16 DIN Male to 4.3-10 Female Low PIM Test RF Adapter DIN(M)-4.3/10(F)

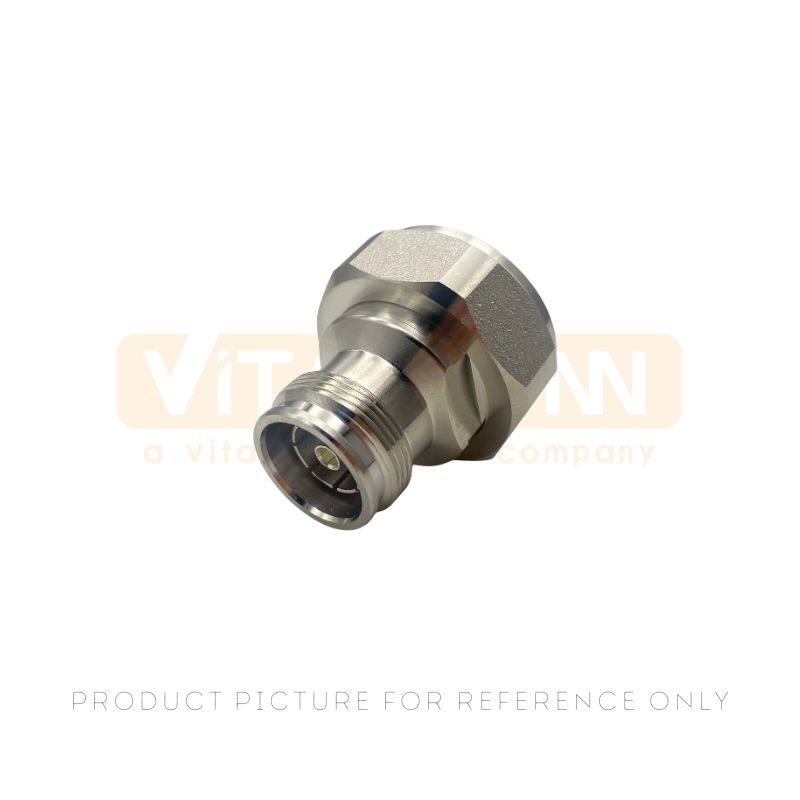

This high-precision DIN Male to 4.3-10 Female Test RF Adapter is a specialized interface solution engineered for ultra-low intermodulation and high electrical stability in advanced telecommunications and measurement systems.

  • Part Number :

    DIN(M)-4.3/10(F)

  • Product Category :

    rf adapter & cable assembly
Inquire Now

Product Overview

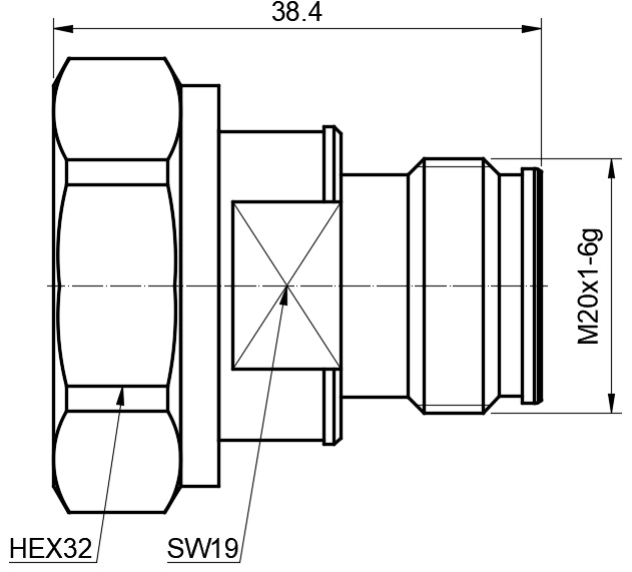

The DIN(M)-4.3/10(F) is a professional 50 Ohm Low PIM Test RF Adapter designed to bridge the gap between 7/16 DIN and 4.3-10 connector standards. With a total axial length of 38.4mm and integrated wrench flats (HEX32 and SW19), it ensures a secure, repeatable, and low-loss connection for both laboratory and field verification.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤ 1.15.
  • Passive Intermodulation (IM3): ≤ -165dBc @ 2x20W @ 3GHz.
  • Dielectric Withstanding Voltage: 1500V.
  • Insulation Resistance: 5000MΩ.
  • This DC to 6GHz Test RF Adapter utilizes high-grade brass and phosphor bronze components with PTFE insulation to maintain superior signal integrity across its entire bandwidth.



Features&Benefits

  • Superior Signal Quality: This Brass Phosphor Bronze Test RF Adapter is optimized for minimal signal reflection and ultra-low passive intermodulation, making it ideal for high-power wireless infrastructure testing.
  • Robust Mechanical Design: Features precision-machined M29x1.5 (DIN) and M20x1-6g (4.3-10) threads to maintain electrical integrity through thousands of mating cycles.
  • Integrated Installation Support: Includes built-in SW19 and HEX32 wrench flats that allow for precise and secure torque application during mounting onto test equipment.
  • Thermal and Electrical Stability: Constructed with premium metallic contacts and high-performance PTFE to ensure consistent dielectric performance even in demanding environments.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • 4G/5G base station testing and telecommunications infrastructure.
  • Passive Intermodulation (PIM) measurement and verification.
  • High-power RF and microwave signal routing.
  • RF laboratory testing, instrument calibration, and field verification.
  • Automated Test Equipment (ATE) system integration.



Frequently Asked Questions (FAQ)

  • Q: What is the Passive Intermodulation (PIM) performance for this model?
  • A: This model features exceptional PIM performance with a Third-Order Intermodulation (IM3) rating of ≤ -165dBc @ 2x20W @ 3GHz, which is essential for precision Test RF Adapter applications.
  • Q: What metallic materials ensure the reliability of this adapter?
  • A: It is constructed using premium Brass and Phosphor Bronze for the metallic components to provide excellent mechanical durability and electrical conductivity.
  • Q: What is the maximum frequency range supported by the DIN(M)-4.3/10(F)?
  • A: This Test RF Adapter is specifically designed for high-performance transmission across a frequency range from DC up to 6GHz.
