DIN Male to N Female High Performance Precision Test RF Adapter DIN(M)-N(F)

DIN Male to N Female High Performance Precision Test RF Adapter DIN(M)-N(F)

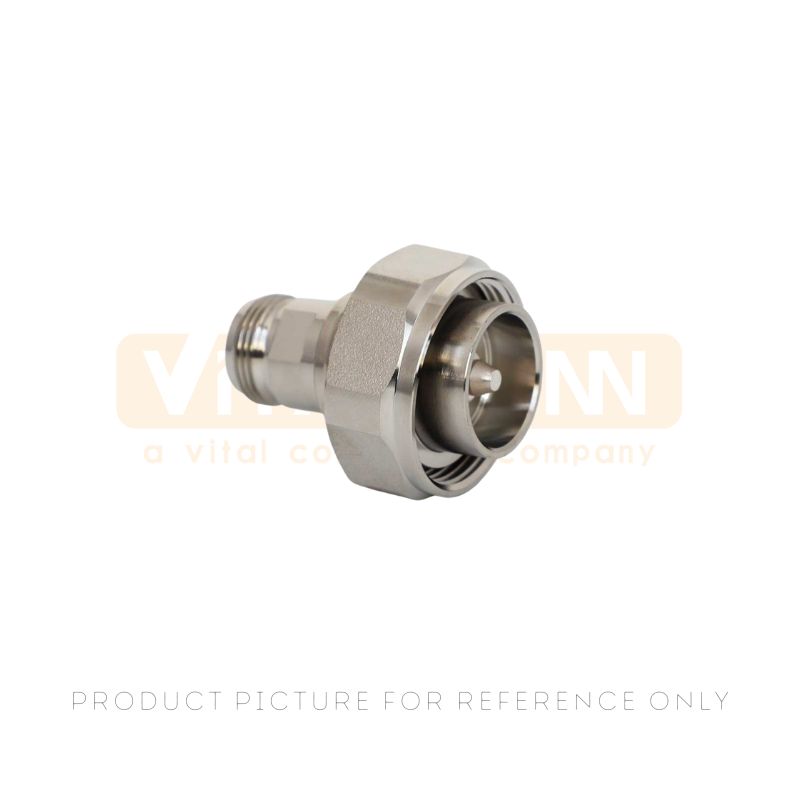

This professional-grade DIN Male to N Female Test RF Adapter is meticulously engineered to provide a seamless and reliable signal transition between 7/16 DIN and N-type connector standards, ensuring superior electrical stability for high-power measurement applications.

  • Part Number :

    DIN(M)-N(F)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

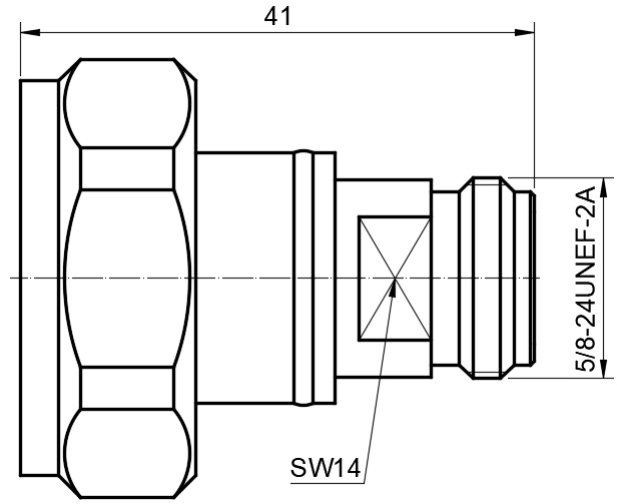

The DIN(M)-N(F) is a premium 50 Ohm Precision Test RF Adapter designed for rigorous telecommunications infrastructure and laboratory verification. Featuring a precision-machined 41mm body and an integrated SW14 wrench flat, it offers a stable and low-loss interface for hardware configurations where mechanical robustness and high-power handling are critical.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • Interface A (DIN Male): Standard M29x1.5 threading.
  • Interface B (N Female): Standard 5/8-24UNEF-2A threading.
  • Total Length: 41mm.
  • This DC to 6GHz Test RF Adapter is manufactured to strict industrial tolerances to ensure repeatable performance across its entire operational bandwidth.



Features&Benefits

  • Integrated Installation Support: Includes a built-in SW14 hex area designed for precise and secure torque application during mounting onto test equipment.
  • Rugged Construction: Built as a high-durability M29 to N Type Test RF Adapter, utilizing precision-machined threads to maintain electrical integrity through repeated mating cycles.
  • Space-Optimized Profile: The compact 41mm axial design allows for integration into high-density test fixtures and base station panels.
  • Versatile Interfacing: Provides a high-quality bridge between different RF standards, facilitating easy connection between high-power infrastructure and standard measurement cables.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • Telecommunications infrastructure (4G/5G base stations) and signal routing.
  • RF and microwave laboratory testing and high-power measurement.
  • Automated Test Equipment (ATE) system integration.
  • Wireless network installation, instrument calibration, and field verification.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum frequency supported by this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission across a frequency range from DC up to 6GHz.
  • Q: Does this adapter include features for secure manual installation?
  • A: Yes, the body features an integrated SW14 wrench flat that allows for accurate torque application when mounting the component.
  • Q: Which connector standards does this Test RF Adapter bridge?
  • A: It facilitates a reliable transition between DIN (M29) male and N-type female interfaces, which is essential for high-power RF infrastructure testing.
