SMA Female to eEBC Male Precision High Performance Test RF Adapter SMA(F)-eEBC(M)

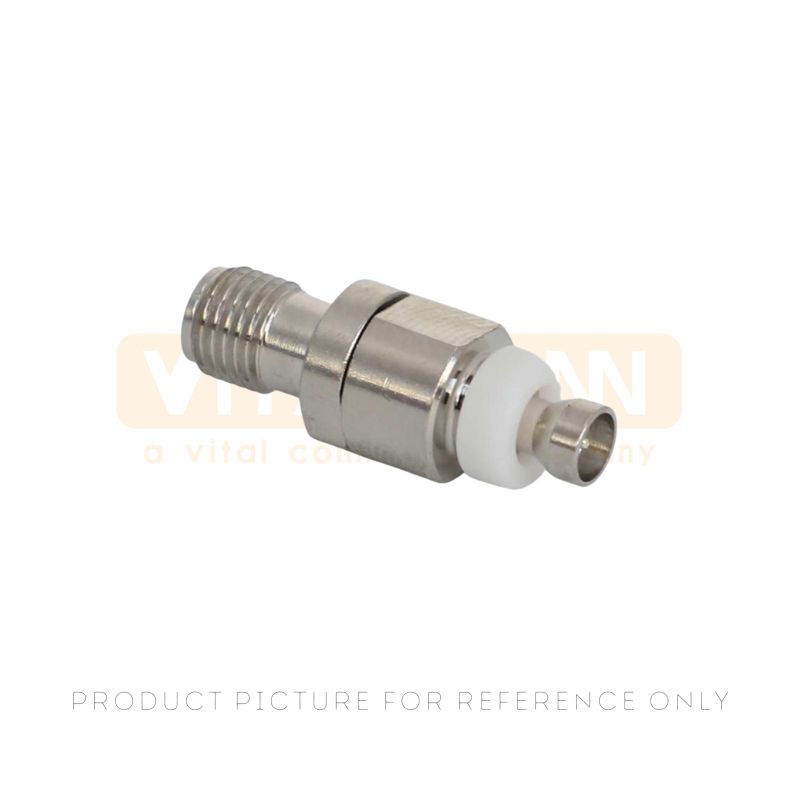

SMA Female to eEBC Male Precision High Performance Test RF Adapter SMA(F)-eEBC(M)

The SMA(F)-eEBC(M) is a professional-grade interface solution within our Test RF Adapter series, engineered to provide a seamless signal transition between SMA and eEBC connector standards while maintaining high electrical reliability.

  • Part Number :

    SMA(F)-eEBC(M)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

This premium 50 Ohm Precision Test RF Adapter is designed for high-density measurement setups where accuracy and durability are paramount. It facilitates stable connections in laboratory environments and telecommunications infrastructure testing by offering consistent performance across its specified bandwidth.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.

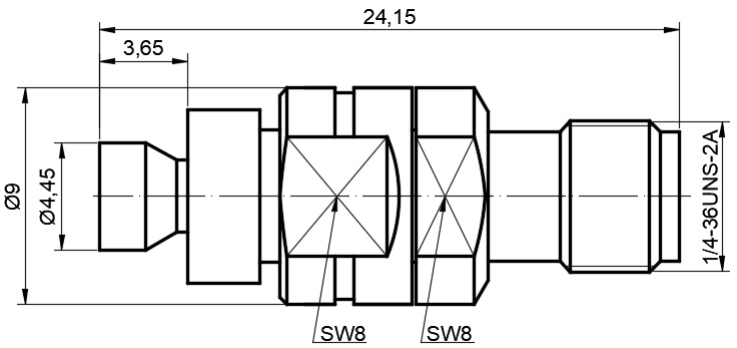

  • This DC to 6GHz Test RF Adapter utilizes precision-machined interfaces and standard 1/4-36UNS-2A threads on the SMA female side to ensure repeatable and secure mating cycles.



Features&Benefits

  • Premium Material Construction: Built as a high-quality Brass Beryllium Copper Test RF Adapter, utilizing high-grade metallic components and gold plating to ensure superior conductivity and oxidation resistance.
  • Minimal Signal Reflection: The optimized internal architecture achieves a very low VSWR of 1.15 or less, significantly reducing signal loss and reflection in sensitive RF circuits.
  • Reliable Insulation: Features high-performance PTFE insulation to maintain dielectric stability and electrical integrity throughout its operational lifespan.
  • Industrial Durability: Engineered to strict industrial tolerances for a perfect fit in space-constrained enclosures and demanding hardware environments.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF and microwave laboratory testing and instrument calibration.
  • 5G and IoT wireless communication module verification.
  • Automated Test Equipment (ATE) system integration.
  • Telecommunications infrastructure signal routing and field testing.
  • Research and development for high-speed data transmission hardware.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum operating frequency for this model?
  • A: This specific Test RF Adapter is designed for high-performance signal transmission across a frequency range from DC up to 6GHz.
  • Q: What materials ensure the mechanical and electrical reliability of the SMA(F)-eEBC(M)?
  • A: It is constructed using premium Brass and Beryllium Copper for the metallic parts and PTFE for internal insulation to ensure superior signal integrity.
  • Q: Is this adapter suitable for precision measurement environments requiring low signal reflection?
  • A: Yes, with an optimized VSWR of ≤1.15, it is specifically engineered for accuracy in sensitive high-frequency test setups where signal accuracy is critical.

Hot Tags :

50 Ohm Precision Test RF Adapter

DC to 6GHz Test RF Adapter

Brass Beryllium Copper Test RF Adapter
