SMA Female to eLwSMP Female Precision High Performance Test RF Adapter SMA(F)-eLwSMP(F)

SMA Female to eLwSMP Female Precision High Performance Test RF Adapter SMA(F)-eLwSMP(F)

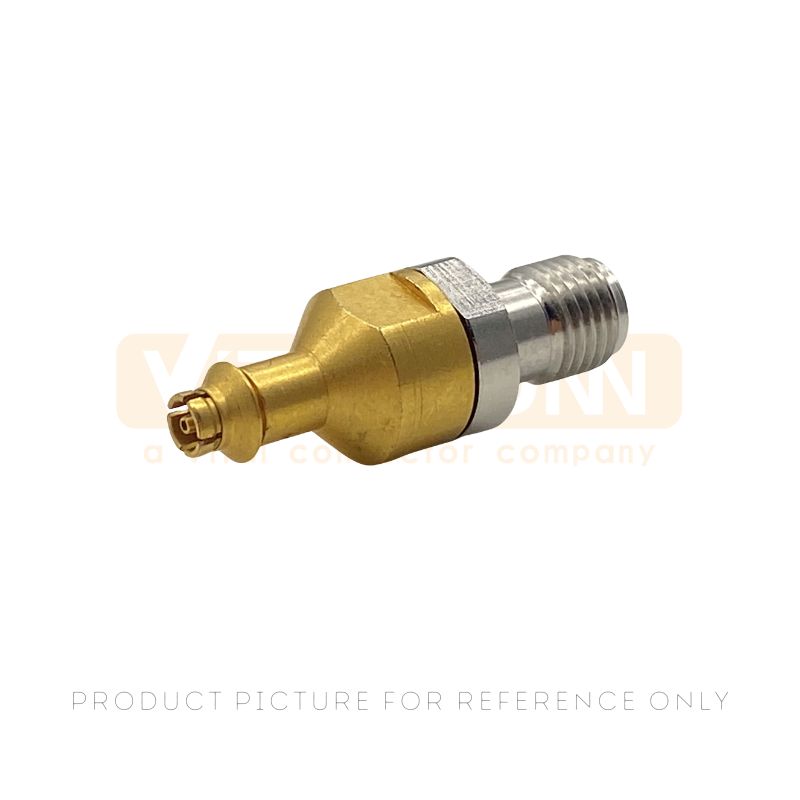

This precision-engineered SMA Female to eLwSMP Female Test RF Adapter is a high-performance component designed to provide a stable and reliable interface for advanced measurement systems and communication hardware.

  • Part Number :

    SMA(F)-eLwSMP(F)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The SMA(F)-eLwSMP(F) is a professional-grade 50 Ohm Precision Test RF Adapter built for rigorous laboratory and production line verification. With a total body length of 24.15mm and dual SW8 wrench flats, it allows for secure and accurate connections in high-density test environments while maintaining optimal electrical performance.

Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.
  • Materials: Brass & Beryllium Copper with PTFE insulation.
  • This DC to 6GHz Test RF Adapter features a standard 1/4-36UNS-2A interface on the SMA side and a specialized eLwSMP female interface with a maximum diameter of Ø9.



Features&Benefits

  • Minimal Signal Reflection: Optimized for a low VSWR of 1.15 or less to ensure superior signal integrity in sensitive RF circuits.
  • Robust Construction: Manufactured as a high-quality Brass Beryllium Copper Test RF Adapter, providing excellent mechanical durability and electrical conductivity for repeated mating cycles.
  • Secure Installation: Includes integrated dual SW8 wrench flats that allow for precise and secure torque application during mounting onto test equipment.
  • Space-Efficient Design: The 24.15mm length and precision-machined profile make it ideal for use in compact test fixtures and handheld instruments.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF and microwave laboratory testing and instrument calibration.
  • Wireless communication module verification (5G, IoT).
  • Automated Test Equipment (ATE) system integration.
  • Telecommunications infrastructure signal routing.
  • Research and development for high-speed data transmission hardware.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum frequency range supported by this model?
  • A: This Test RF Adapter is specifically designed for high-performance signal transmission across a frequency range of DC up to 6GHz.
  • Q: Does this adapter include features for secure manual installation?
  • A: Yes, the body features integrated SW8 wrench flats that allow for precise torque application when mounting the component onto measurement instruments.
  • Q: What materials ensure the electrical reliability of this Test RF Adapter?
  • A: It is constructed using premium Brass and Beryllium Copper for the metallic components and PTFE for the internal insulation to ensure superior signal integrity.
