3 GHz 7 16 Male to N Male Low PIM Test Cable Assembly PIM-1/2S-7/16M-NM-L

PIM-1/2S-7/16M-NM-L Low PIM Test Cable Assembly

3 GHz 7 16 Male to N Male Low PIM Test Cable Assembly PIM-1/2S-7/16M-NM-L

3 GHz Low PIM Test Cable Assembly with 7/16 male and N male connectors for RF measurement applications.

Part Number :
PIM-1/2S-7/16M-NM-L
Product Category :
Low PIM Test Cable Assembly

Inquire Now

Product categories

New Products

Product Introduction

Product Overview

3 GHz 7 16 Male to N Male Low PIM Test Cable Assembly designed for RF measurement applications requiring controlled passive intermodulation. It provides 50 ohm impedance, VSWR up to 1.15, and third-order intermodulation performance up to -168 dBc at 2 x 20 W.

Product Specifications

Specification	Details
Product Type	Low PIM Test Cable Assembly
Part Number	PIM-1/2S-7/16M-NM-L
Connector Configuration	7/16 Male to N Male
Cable Type	1/2S
Characteristic Impedance	50 Ohm
Frequency Range	DC to 3 GHz
VSWR	1.15 Max
Third Order Intermodulation IM3	-168 dBc Max at 2 x 20 W
Dielectric Withstanding Voltage	1500 V
Insulation Resistance	5000 MOhm
Materials	Brass Beryllium Copper and PTFE
Cable Length	Optional

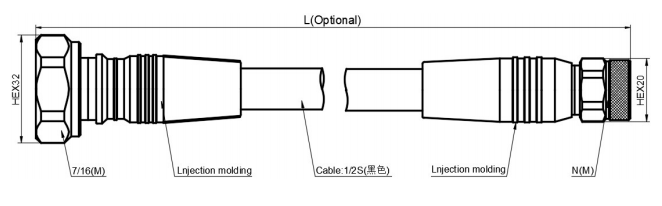

PIM-1/2S-7/16M-NM-L Low PIM Cable Technical Drawing

Product Features

Low PIM Performance Provides third order intermodulation performance up to -168 dBc at 2 x 20 W.
3 GHz Frequency Range Supports RF test applications from DC to 3 GHz.
7/16 to N Interface Combines 7/16 male and N male connectors for flexible RF system integration.
50 Ohm Impedance Maintains standard RF impedance for test and measurement systems.
Electrical Isolation Provides 1500 V dielectric withstanding voltage and 5000 MOhm insulation resistance.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

PIM Testing Typical passive intermodulation measurement setups.
Wireless Infrastructure RF cable testing for wireless communication equipment.
Base Station Systems Low PIM interconnection and verification applications.
Antenna Testing RF signal connection during antenna and feeder testing.
RF Laboratories Measurement setups requiring controlled PIM performance.

Frequently Asked Questions (FAQ)

Q: What is the frequency range of this 7 16 to N Male Low PIM Test Cable Assembly?
A: The catalogue specifies a frequency range from DC to 3 GHz with a maximum VSWR of 1.15.

Q: What is the third order intermodulation performance of this low PIM RF cable?
A: The specified IM3 performance is -168 dBc maximum at 2 x 20 W.

Q: What dielectric withstanding voltage does PIM-1/2S-7/16M-NM-L provide?
A: The catalogue specifies 1500 V dielectric withstanding voltage and 5000 MOhm insulation resistance.
