Name: 7/16 Male to 7/16 Male Low PIM Test Cable Assembly PIM-401-7/16M-7/16M-L
Availability: InStock

7/16 Male to 7/16 Male Low PIM Test Cable Assembly PIM-401-7/16M-7/16M-L

7/16 Male to 7/16 Male Low PIM Test Cable with -168 dBc Low PIM Performance, 50 Ohm impedance and DC to 3 GHz operation for RF testing.

Part Number :
PIM-401-7/16M-7/16M-L
Product Category :
Low PIM Test Cable Assembly

Product categories

New Products

Product Specifications

pecification	Details
Product Type	Low PIM Test Cable Assembly

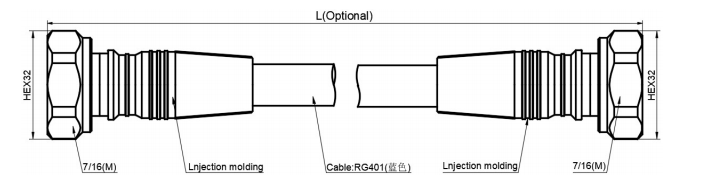

Connector Configuration	7/16 Male to 7/16 Male
Characteristic Impedance	50 Ohm
Frequency Range	DC to 3 GHz
VSWR	1.15 max
Third Order Intermodulation IM3	-168 dBc max at 2 x 20 W
Dielectric Withstanding Voltage	2000 V
Insulation Resistance	5000 MOhm
Materials	Brass, Beryllium Copper and PTEF

Product Features

7/16 Male Interfaces: Provides matching 7/16 male connectors for compatible RF test setups and measurement connections.

-168 dBc Low PIM Performance: Supports low third-order intermodulation performance of -168 dBc max at 2 x 20 W.

50 Ohm RF Design: Maintains a 50 Ohm characteristic impedance for standard RF test environments.

DC to 3 GHz Operation: Designed for RF test and measurement across a frequency range from DC to 3 GHz.

High Dielectric Withstanding: Provides 2000 V dielectric withstanding voltage and 5000 MOhm insulation resistance.

Applications

RF Test Systems: Used in low PIM RF test and measurement setups.

Base Station Testing: Suitable for RF performance verification in wireless infrastructure.

Antenna Testing: Supports low PIM connection paths for antenna measurements.

Passive Intermodulation Testing: Designed for PIM evaluation and related test configurations.

RF Laboratory Equipment: Suitable for laboratory instruments requiring 50 Ohm test connections.

Frequently Asked Questions (FAQ)

Q: What is the connector configuration of this 7/16 male RF test cable?

A: The cable uses a 7/16 male connector at both ends, providing a matching interface for compatible RF test equipment and low PIM measurement setups.

Q: What is the IM3 performance of the PIM-401-7/16M-7/16M-L cable assembly?

A: The specified third-order intermodulation performance is -168 dBc max at 2 x 20 W. The cable also provides 50 Ohm impedance and a maximum VSWR of 1.15.

Q: What frequency range does this low PIM test cable support?

A: The specified frequency range is DC to 3 GHz, with a characteristic impedance of 50 Ohm and a maximum VSWR of 1.15.
