3 GHz 7 16 Male to 7 16 Male Low PIM Test Cable Assembly PIM-1/2S-7/16M-7/16M-L

Product Overview

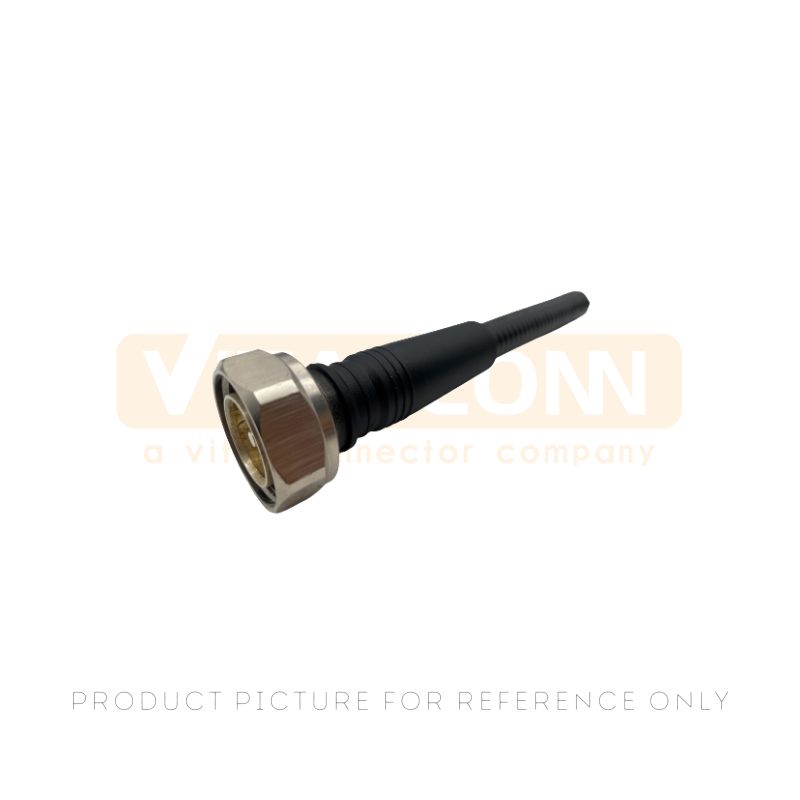

3 GHz 7 16 Male to 7 16 Male Low PIM Test Cable Assembly designed for RF testing applications requiring low passive intermodulation performance. The assembly features 50 ohm impedance, VSWR of 1.15 maximum, and IM3 of -168 dBc at 2 x 20 W.

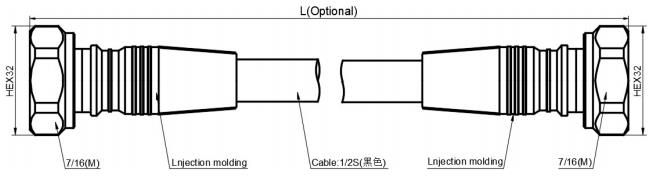

Product Specifications

Product Features

• Low PIM Performance Provides third order intermodulation performance of -168 dBc at 2 x 20 W.
• 7/16 Male Connectors Uses 7/16 male interfaces at both ends for compatible RF test connections.
• 3 GHz Frequency Range Supports RF applications operating from DC to 3 GHz.
• 50 Ohm Impedance Provides a standard impedance for RF measurement and communication systems.
• Stable VSWR Maintains VSWR at 1.15 maximum for reliable RF signal transmission.

Packing Details

Standard packaging can be provided according to product quantity, handling requirements, and customer specifications.

Applications

• PIM Testing Low PIM measurement and verification.
• Wireless Infrastructure RF testing for wireless communication equipment.
• Base Stations Testing of RF paths and network equipment.
• Antenna Systems Low PIM testing for antenna connections.
• RF Laboratories Cable evaluation and signal measurement.

Frequently Asked Questions (FAQ)

Q: What is the PIM performance of this 7 16 low PIM test cable?
A: The specified third order intermodulation performance is -168 dBc maximum at 2 x 20 W.

Q: Is this 3 GHz low PIM cable suitable for base station testing?
A: Its 7/16 male connectors, 50 ohm impedance, and low PIM performance make it suitable for RF testing applications in wireless infrastructure.

Q: What is the VSWR specification of this RF test cable assembly?
A: The catalog specifies a maximum VSWR of 1.15 across the DC to 3 GHz frequency range.
