7/16 Male to N Male Low PIM Test Cable Assembly PIM-401-7/16M-NM-L

7/16 male to N male low PIM test cable assembly with RG401 cable

7/16 Male to N Male Low PIM Test Cable Assembly PIM-401-7/16M-NM-L

7/16 Male to N Male Low PIM Test Cable with -168 dBc Low PIM performance, 50 Ohm impedance and DC to 3 GHz frequency range.

Part Number :
PIM-401-7/16M-4.3/10M-L
Product Category :
Low PIM Test Cable Assembly

Product categories

New Products

Product Introduction

Product Overview

7/16 Male to N Male Low PIM Test Cable Assembly designed for reliable RF testing and measurement applications. It uses RG401 cable with 50 Ohm impedance and supports frequencies from DC to 3 GHz. The assembly provides VSWR of 1.15 maximum and third-order intermodulation performance of -168 dBc maximum at 2 x 20 W.

Product Specifications

Specification	Details
Product Type	Low PIM Test Cable Assembly
Connector 1	7/16 Male
Connector 2	N Male
Cable Type	RG401
Characteristic Impedance	50 Ohm
Frequency Range	DC to 3 GHz
VSWR	1.15 max
Third Order Intermodulation IM3	-168 dBc max at 2 x 20 W
Dielectric Withstanding Voltage	2000 V
Insulation Resistance	5000 MOhm
Cable Construction Materials	Brass, Beryllium Copper and PTFE

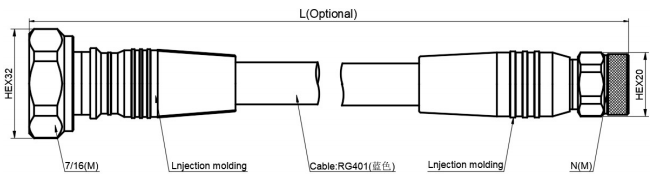

Cable Length	Optional L

Product Features

7/16 Male to N Male Configuration
Provides a practical interface combination for RF test equipment and measurement setups.
Low PIM Performance
The Low PIM Test Cable Assembly achieves IM3 of -168 dBc maximum at 2 x 20 W.
50 Ohm Impedance
Maintains a standard 50 Ohm characteristic impedance for RF applications.
Wide Frequency Range
Supports operation from DC to 3 GHz for flexible testing requirements.
RG401 Cable Construction
Uses RG401 cable with durable brass, beryllium copper and PTFE materials.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

RF Testing
Suitable for RF equipment testing and signal measurement.
PIM Testing
Designed for passive intermodulation evaluation.
Wireless Networks
Supports testing of RF components used in wireless communication systems.
Antenna Systems
Suitable for antenna and feeder system measurements.
Laboratory Equipment
Used in RF laboratories and engineering test setups.

Frequently Asked Questions (FAQ)

Q: What are the connector types of this 7/16 male to N male low PIM test cable?
A: This cable assembly uses a 7/16 male connector on one end and an N male connector on the other, providing a practical connection between compatible RF testing equipment and components.

Q: What is the frequency range of an RG401 cable for low PIM testing?
A: The cable supports a frequency range from DC to 3 GHz. It is designed for RF testing applications where stable impedance and low intermodulation performance are important.

Q: What is the PIM performance of this cable assembly?
A: The specified third-order intermodulation performance is -168 dBc maximum when tested at 2 x 20 W. The cable also provides 50 Ohm characteristic impedance and a maximum VSWR of 1.15.
