RF Adapter&Cable Assembly Millimeter-Wave Test Cable Assembly2.92mm Millimeter Wave Test Cable Assembly – DC to 40GHz, Low Loss for VNA Calibration & mmWave Device Testing 360T-2.92-JJ-L
Millimeter Wave Test Cable Assembly 360T-2.92-JJ-L delivers DC to 40GHz performance with 2.92mm connectors. Featuring 50 ohm impedance and low insertion loss, it provides reliable signal transmission for VNA calibration and high-frequency device characterization.
Part Number :
360T-2.92-JJ-LProduct Category :
rf adapter & cable assembly
Product Overview

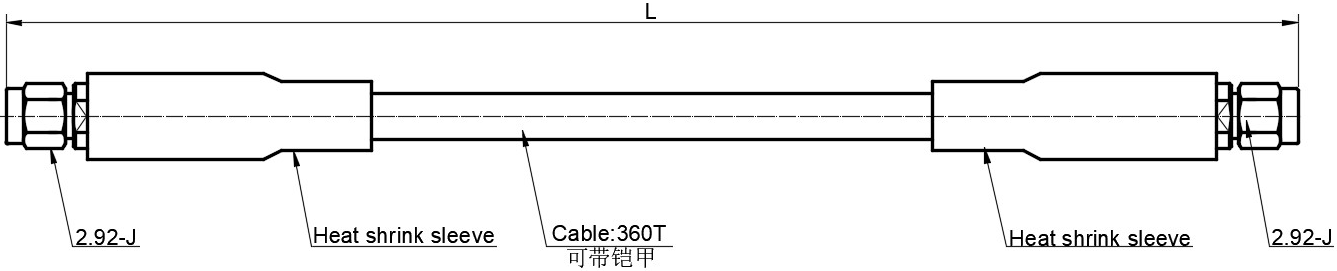

This Precision Millimeter Wave Test Cable Assembly supports DC to 40GHz signal transmission with 2.92mm connectors. The 360T-2.92-JJ-L delivers 50 ohm impedance, 1.25 maximum VSWR, and 3.6dB/m insertion loss. Stainless steel and beryllium copper construction ensures stable performance for VNA calibration and device testing.
Product Specifications / Attributes
This cable assembly delivers consistent performance across the parameters below:
|
Attribute |
Value |
|
Product Model |
360T-2.92-JJ-L |
|
Product Type |
Millimeter Wave Test Cable Assembly |
|
Connector Type |
2.92mm |
|
Frequency Range |
DC ~ 40GHz |
|
Characteristic Impedance |
50 Ohm |
|
VSWR |
<=1.25 |
|
Insertion Loss |
<=3.6 dB/m |
|
Dielectric Withstanding Voltage |
1000V |
|
Insulation Resistance |
5000 MOhm |
|
Contact Material |
Beryllium Copper |
|
Body Material |
Stainless Steel |
|
Dielectric Material |
PEI |
Features&Benefits
· DC to 40GHz Wideband Coverage: Supports full frequency range for VNA calibration and device characterization.
· Low Insertion Loss: 3.6dB/m maximum ensures minimal signal attenuation for accurate measurement results.
· 2.92mm Precision Connectors: Machined interfaces compatible with 2.92mm and SMA male connectors for test configurations.
· Stainless Steel Construction: Rugged body with beryllium copper contacts delivers mechanical stability and repeatable performance.
· Versatile rf adapter & cable assembly: Functions as cable and adapter for diverse laboratory test setups and configurations.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
· Vector network analyzer calibration and precision measurement setups requiring stable phase and amplitude response in laboratory environments
· Millimeter wave device characterization and production-line testing for semiconductor manufacturers developing 40GHz active and passive components
· 5G FR2 and satellite communication component validation requiring wideband signal transmission and low insertion loss performance
· Laboratory research and development for high-frequency circuit design, antenna measurements, and signal integrity verification applications
· Aerospace and defense radar subsystem signal routing and component-level test configurations demanding repeatable RF measurement performance
Frequently Asked Questions (FAQ)
Q: What frequency range does the 360T-2.92-JJ-L support?
A: The 360T-2.92-JJ-L operates from DC to 40GHz, making it suitable for millimeter wave device characterization, VNA calibration, and high-frequency signal integrity testing in laboratory environments.
Q: What connectors are used on this cable assembly?
A: This assembly features 2.92mm connectors on both ends, ensuring compatible mating with standard 2.92mm and SMA interfaces for versatile RF test setups.
Q: What is the insertion loss specification?
A: The insertion loss is specified at 3.6dB per meter maximum, delivering reliable signal transmission for precision measurement across the full operating band.
