RF Adapter&Cable Assembly Millimeter-Wave Test Cable AssemblyMillimeter Wave Test Cable Assembly High Precision 110GHz RF Adapter & Cable Assembly 150T-1.0JK-L
Millimeter Wave Test Cable Assembly 150T-1.0JK-L delivers premier signal transmission up to 110GHz. Featuring 1.0mm connectors, 50 Ohm impedance, and low insertion loss, this 110GHz High Precision Millimeter Wave Test Cable Assembly and versatile rf adapter & cable assembly solution is engineered for 5G, radar, and lab testing.
Part Number :
150T-1.0JK-LProduct Category :
rf adapter & cable assembly
Product Overview
Millimeter Wave Test Cable Assembly 150T-1.0JK-L is a high-performance test cable built for demanding high-frequency environments. Equipped with durable 1.0mm connectors and PEI dielectric, this 1.0mm Flexible Millimeter Wave Test Cable Assembly ensures stable 50 Ohm signal integrity, low VSWR under 1.5, and minimum phase dispersion for millimeter-wave measurements.
Product Specifications / Attributes
| Parameter / Specification Item | Technical Specification Details |
| Product Category | Ultra Low Loss Millimeter Wave Test Cable Assembly |
| Model Number | 150T-1.0JK-L |
| Connector Type | 1.0mm Jack to 1.0mm Plug (1.0mm JK) |
| Characteristic Impedance |
50 Ω |
| Operating Frequency Range |
DC ~ 110 GHz |
| Voltage Standing Wave Ratio (VSWR) |
≤ 1.5 |
| Insertion Loss |
≤ 14.5 dB/m |
| Dielectric Withstanding Voltage |
350 V |
| Insulation Resistance |
≥ 1000 MΩ |
| Body & Contact Materials |
Stainless Steel, Beryllium Copper & PEI Insulator |
| Application Environment | Broadband Test & Measurement Systems |
Features&Benefits
DC-110GHz Bandwidth: Supports ultra-broadband signal transmission from DC to 110GHz for next-generation RF systems.
Low Signal Attenuation: Delivers outstanding energy efficiency with insertion loss ≤14.5dB/m using 1.0mm Flexible Millimeter Wave Test Cable Assembly technology.
Rugged Construction: Built with stainless steel and beryllium copper for high mating durability.
Superior Impedance Matching: Maintains precise 50 Ohm impedance with VSWR ≤1.5 across full bandwidth.
High Insulation Stability: Features PEI insulator achieving dielectric withstand up to 350V.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Frequently Asked Questions (FAQ)
Q: What is the frequency range and impedance of the 150T-1.0JK-L cable assembly?
A: The 150T-1.0JK-L 110GHz High Precision Millimeter Wave Test Cable Assembly operates from DC to 110GHz with a characteristic impedance of 50 Ohms, ensuring excellent high-frequency signal transmission.
Q: What are the maximum insertion loss and VSWR specifications for this model?
A: This model features a maximum insertion loss of ≤14.5dB/m and a Voltage Standing Wave Ratio (VSWR) of ≤1.5, delivering stable performance for precision millimeter-wave measurements.
Q: What materials are used in the construction of the 150T-1.0JK-L cable?
A: Built with passivated stainless steel, gold-plated beryllium copper contacts, and high-grade PEI dielectric insulation, it provides superior mechanical durability and high insulation resistance.

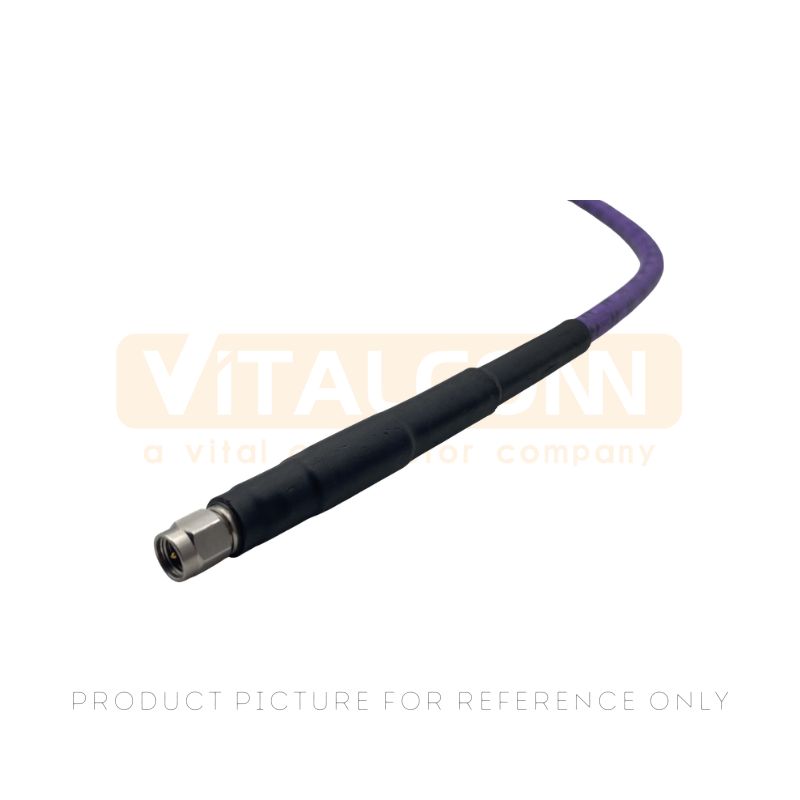

Millimeter Wave Test Cable Assembly 360T-2.92-JJ-L delivers DC to 40GHz performance with 2.92mm connectors. Featuring 50 ohm impedance and low insertion loss, it provides reliable signal transmission for VNA calibration and high-frequency device characterization.
Read More

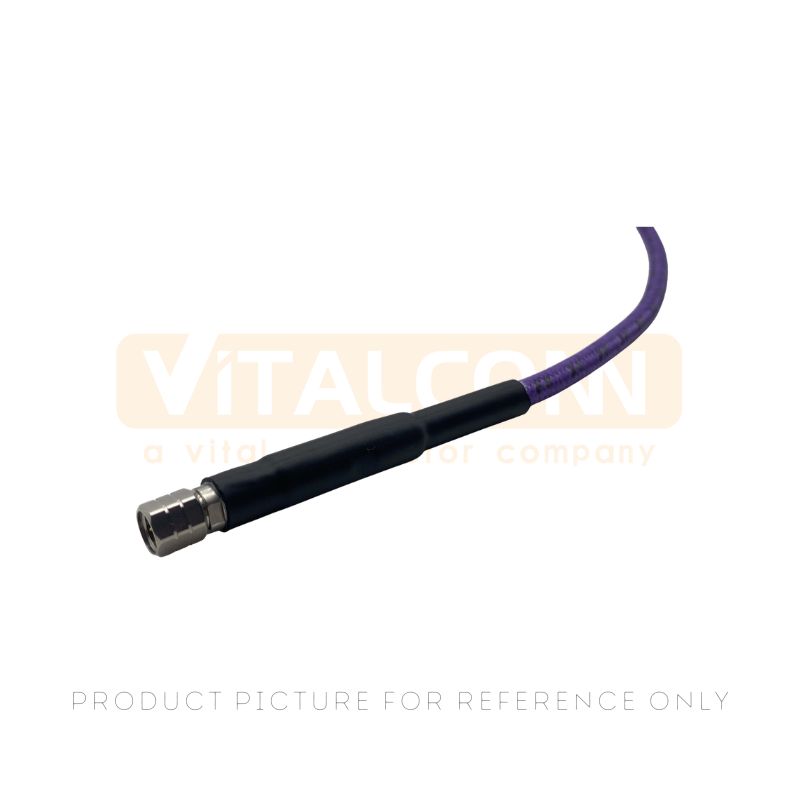

Millimeter Wave Test Cable Assembly 220T-1.85JK-L delivers DC to 67GHz performance with 1.85mm connectors. Featuring 50 ohm impedance and low VSWR, it provides dependable signal transmission for advanced mmWave device testing and characterization.
