RF Adapter&Cable Assembly Millimeter-Wave Test Cable Assembly1.85mm Millimeter Wave Test Cable Assembly – DC to 67GHz, Low VSWR for 5G Testing, Radar & Satellite Communication 220T-1.85JK-L
Millimeter Wave Test Cable Assembly 220T-1.85JK-L delivers DC to 67GHz performance with 1.85mm connectors. Featuring 50 ohm impedance and low VSWR, it provides dependable signal transmission for advanced mmWave device testing and characterization.
Part Number :
220T-1.85JK-LProduct Category :
rf adapter & cable assembly
Product Overview

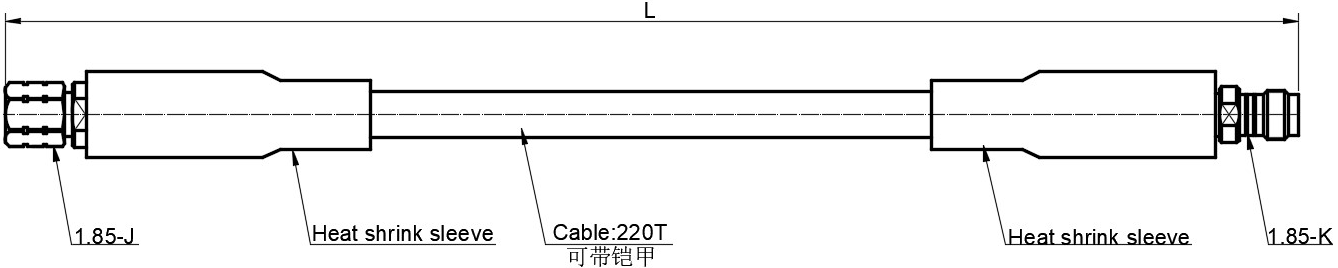

This Precision Millimeter Wave Test Cable Assembly enables DC to 67GHz signal transmission with 1.85mm connectors. The 220T-1.85JK-L provides 50 ohm impedance, 1.35 maximum VSWR, and 6.5dB/m insertion loss. Stainless steel and beryllium copper construction ensures reliable performance for VNA calibration and mmWave device testing.
Product Specifications / Attributes
This cable assembly delivers consistent performance across the parameters below:
|
Attribute |
Value |
|
Product Model |
220T-1.85JK-L |
|
Product Type |
Millimeter Wave Test Cable Assembly |
|
Connector Type |
1.85mm |
|
Frequency Range |
DC ~ 67GHz |
|
Characteristic Impedance |
50 Ohm |
|
VSWR |
<=1.35 |
|
Insertion Loss |
<=6.5 dB/m |
|
Dielectric Withstanding Voltage |
500V |
|
Insulation Resistance |
1000 MOhm |
|
Contact Material |
Beryllium Copper |
|
Body Material |
Stainless Steel |
|
Dielectric Material |
PEI |
Features&Benefits
· DC to 67GHz Ultra-Wideband Coverage: Supports full millimeter wave frequency range for advanced device characterization and measurement applications.
· Low VSWR Performance: 1.35 maximum VSWR ensures minimal signal reflection for accurate and repeatable measurement results.
· 1.85mm Precision Connectors: High-frequency interfaces designed for 67GHz operation, compatible with standard 1.85mm test equipment configurations.
· Stainless Steel Construction: Rugged body with beryllium copper contacts delivers mechanical stability and consistent repeatable performance.
· Versatile rf adapter & cable assembly: Functions as cable and adapter for diverse laboratory test setups and measurement configurations.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
· Advanced vector network analyzer calibration and measurement setups requiring 67GHz wideband signal transmission in research environments
· Millimeter wave device characterization for semiconductor manufacturers developing 5G FR2 and next-generation communication components
· Satellite communication and earth station subsystem testing requiring stable high-frequency signal routing and low VSWR
· Laboratory research and development for millimeter wave circuit design, antenna measurements, and signal integrity verification
· Aerospace and defense radar and electronic warfare subsystem component-level testing demanding repeatable measurement performance
Frequently Asked Questions (FAQ)
Q: What frequency range does the 220T-1.85JK-L support?
A: The 220T-1.85JK-L operates from DC to 67GHz, enabling millimeter wave testing for advanced radar, 5G, and satellite communication applications requiring ultra-wideband performance.
Q: What connector type does this cable assembly use?
A: This assembly features 1.85mm connectors, providing high-frequency performance up to 67GHz with 1.35 maximum VSWR for accurate measurement and device characterization.
Q: What is the insertion loss specification?
A: The insertion loss is specified at 6.5dB per meter maximum, delivering reliable signal transmission for precision measurement across the full DC to 67GHz band.
