RF Adapter&Cable Assembly VSWR Test Cable AssemblyX1 SMA Male VSWR Test Cable Assembly High Stability RF Test Cable X1-NM-SMA-L

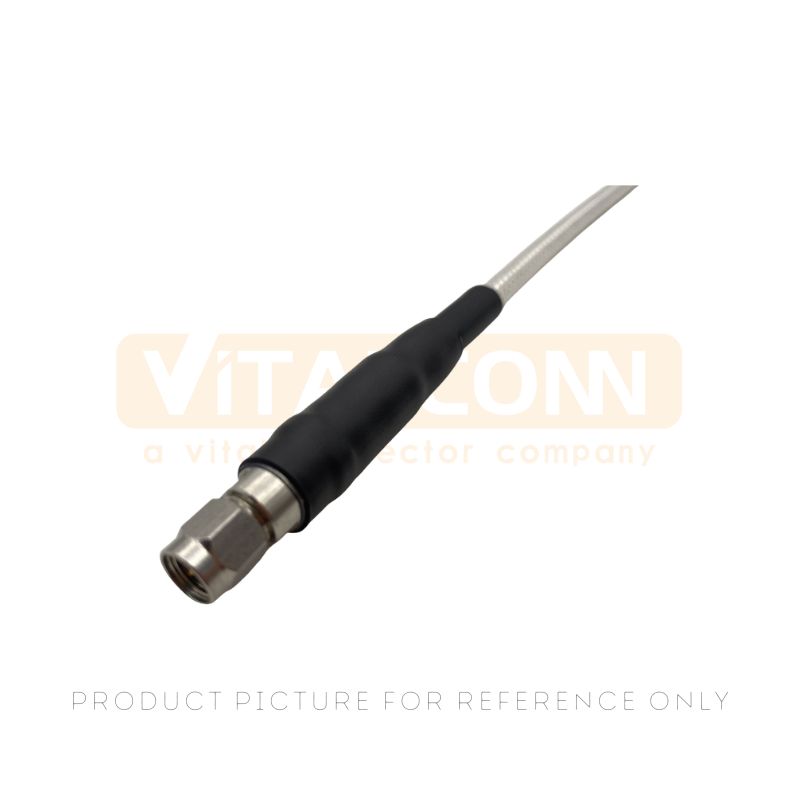

X1 SMA Male VSWR Test Cable Assembly with high stability RF performance featuring low insertion loss and precise phase stability for testing applications.
Part Number :
X1-NM-SMA-LProduct Category :
rf adapter & cable assembly
Product Overview

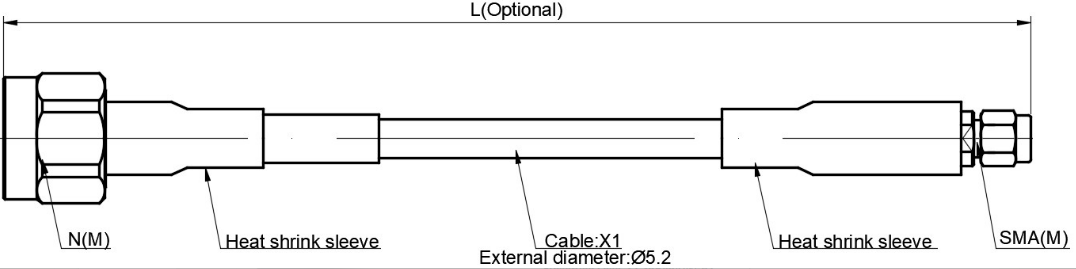

X1-NM-SMA-L is a VSWR Test Cable Assembly featuring SMA male connectors, 50Ω impedance, and stable RF performance up to 18GHz. It provides reliable signal transmission for high-frequency testing systems.
Product Specifications / Attributes
Features&Benefits
High Frequency Performance Supports RF testing applications up to 18GHz with stable signal transmission.
Low Insertion Loss Provides ≤1.3dB/m insertion loss at 6GHz.
Stable Phase Performance Maintains ±2° phase stability for accurate measurements.
SMA Connection Design Uses SMA male interface for reliable RF connections.
VSWR Test Cable Assembly Designed for precision RF testing and measurement systems.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Frequently Asked Questions (FAQ)
Q: What is the frequency range of the X1-NM-SMA-L VSWR Test Cable Assembly?
A: The cable assembly supports DC to 18GHz frequency operation for RF testing applications.
Q: Why choose a high stability RF test cable for measurement systems?
A: High stability helps maintain consistent amplitude and phase performance during RF measurements.
Q: What connector type is used in the X1-NM-SMA-L cable assembly?
A: The product uses an SMA male connector configuration designed for RF test connections.

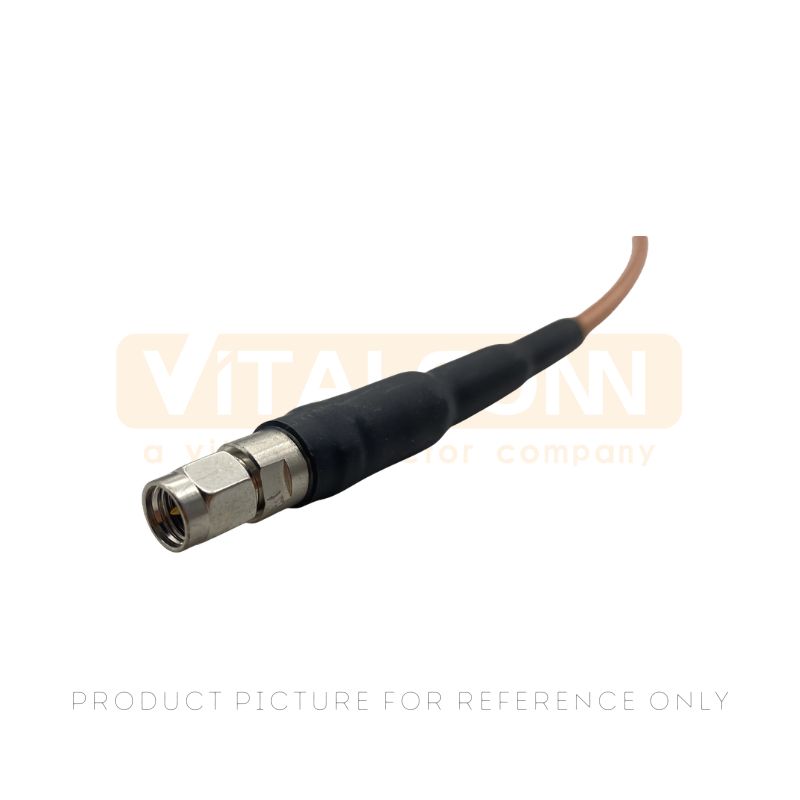

Premium VSWR test cable assembly featuring 50 Ohm impedance, DC-6GHz frequency range, and ultra-low insertion loss for precise RF testing applications.
Read More

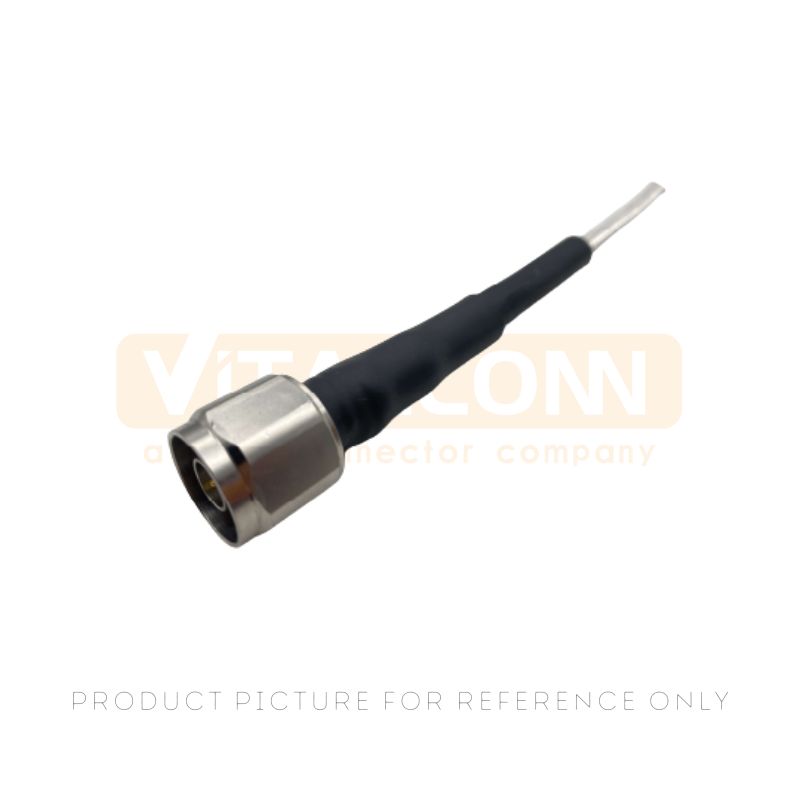

Premium 18GHz VSWR test cable assembly X1-NM-NM-L delivers low insertion loss and high phase stability for high-frequency test and measurement applications.
Read More
X1 SMA Male VSWR Test Cable Assembly with high stability RF performance featuring low insertion loss and precise phase stability for testing applications.
Read More

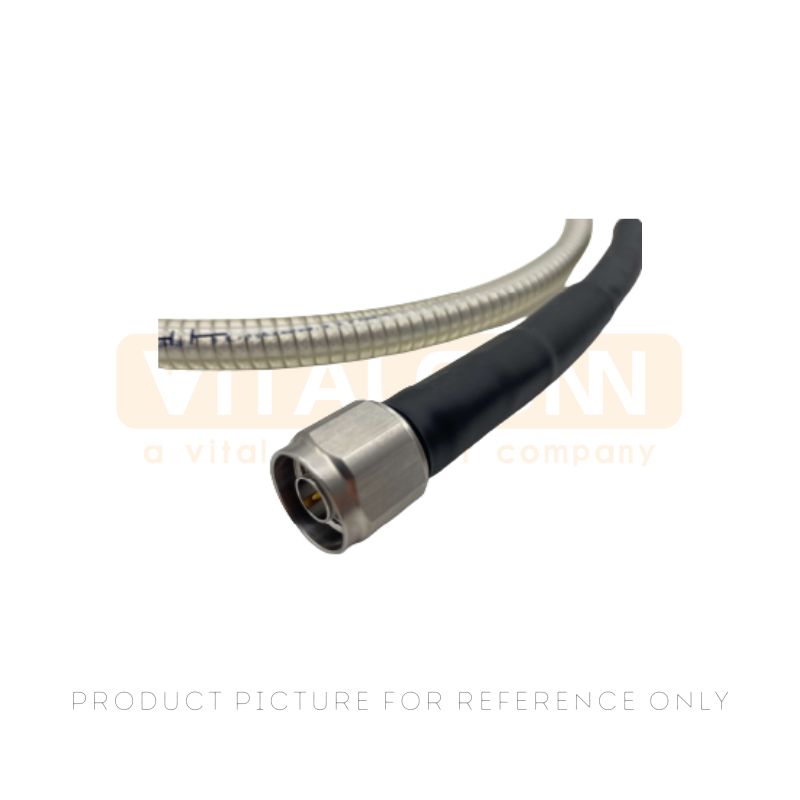

AX1 N Male to N Male VSWR Test Cable Assembly with high stability RF test cable performance featuring low insertion loss and precise phase stability.
Read More

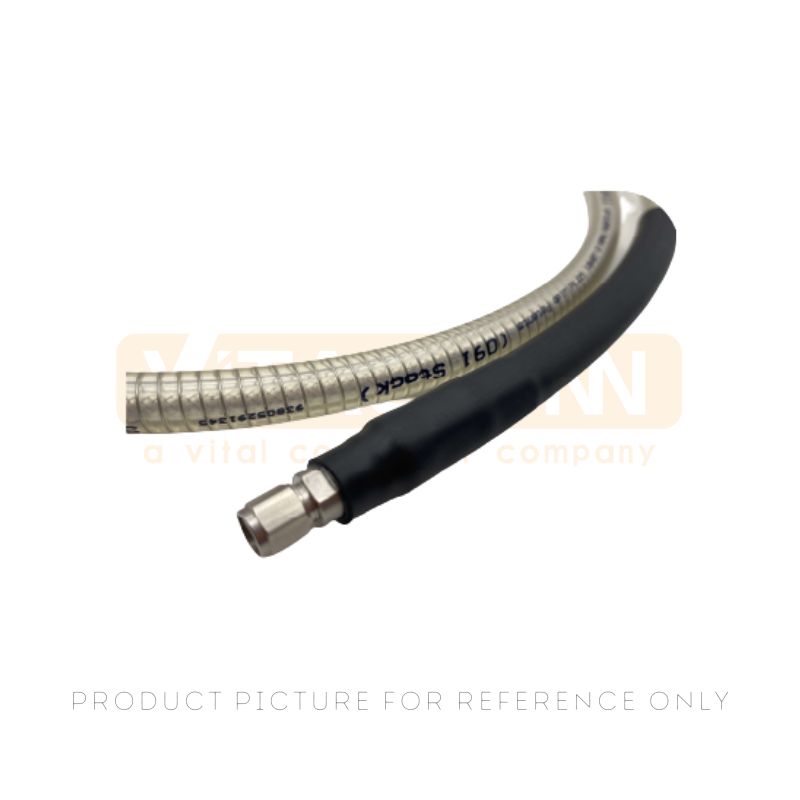

18 GHz N Male to SMA Male VSWR Test Cable Assembly designed for RF testing and measurement applications requiring stable high frequency performance.
