RF Adapter&Cable Assembly VSWR Test Cable AssemblyHigh Performance 18GHz N Male to N Male VSWR Test Cable Assembly X1-NM-NM-L
Premium 18GHz VSWR test cable assembly X1-NM-NM-L delivers low insertion loss and high phase stability for high-frequency test and measurement applications.
Part Number :
X1-NM-NM-LProduct Category :
rf adapter & cable assembly
Product Overview

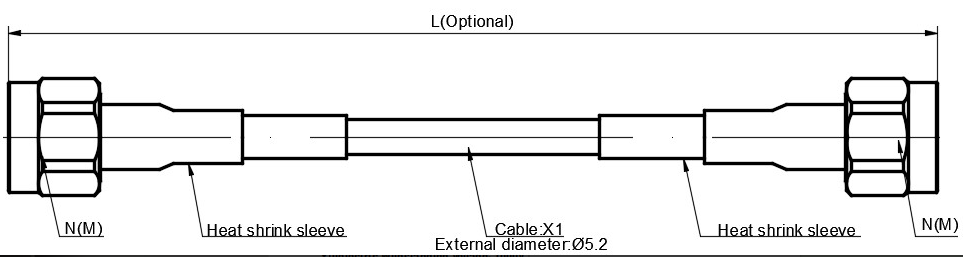

VSWR Test Cable Assembly X1-NM-NM-L is engineered for high-frequency test environments up to 18GHz. Designed with N Male to N Male interfaces, it delivers precise phase and amplitude stability, ultra-low insertion loss, and reliable 50 Ohm impedance, ensuring high accuracy across demanding RF test setups.
Product Specifications / Attributes
| Parameter | Specification |
| Model Number | X1-NM-NM-L |
| Connector Type | N Male to N Male |
| Impedance | 50 Ω |
| Frequency Range | DC ~ 18GHz |
| VSWR | ≤1.2 @ 18GHz |
| Insertion Loss | ≤1.3dB/m @ 6GHz |
| Amplitude Stability | ±0.05dB @ 6GHz |
| Phase Stability | ±2° @ 6GHz |
| Dielectric Withstanding Voltage | 1000V |
| Insulation Resistance | 5000MΩ |
| Materials | Stainless Steel & Beryllium Copper & PEI |
Features&Benefits
18GHz Precision: Superior high-frequency RF transmission performance up to 18GHz.
Low Loss: Optimized low insertion loss for accurate test measurements.
High Stability: Outstanding phase and amplitude stability during movement.
Durable Build: Premium stainless steel construction ensures long operational life.
Universal N Male: Dual N Male interfaces fit standard RF test setups.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Laboratory Testing: High-precision RF and microwave laboratory measurement systems.
Vector Network Analyzers: VNA testing and calibration setups requiring stable connections.
5G & Telecom: High-frequency wireless base station and antenna field testing.
Aerospace & Defense: Rugged RF interconnect testing in demanding defense environments.
Component Testing: QA and production line evaluation of passive/active RF components.
Frequently Asked Questions (FAQ)
Q: What is the frequency range and VSWR of this cable assembly?
A: It operates from DC to 18GHz with an exceptional VSWR of ≤1.2 at 18GHz for accurate measurements.
Q: What materials are used in manufacturing X1-NM-NM-L?
A: Built with stainless steel connectors, beryllium copper contacts, and high-grade PEI dielectric materials for durability.
Q: Does this rf adapter & cable assembly support phase-sensitive testing?
A: Yes, it offers ±2° phase stability and ±0.05dB amplitude stability at 6GHz, ideal for precise testing.
Premium VSWR test cable assembly featuring 50 Ohm impedance, DC-6GHz frequency range, and ultra-low insertion loss for precise RF testing applications.
