18 GHz N Male to SMA Male VSWR Test Cable Assembly AX1-NM-SMAM-L

18 GHz N Male to SMA Male VSWR Test Cable Assembly designed for RF testing and measurement applications requiring stable high frequency performance.

Part Number :
AX1-NM-SMAM-L
Product Category :
VSWR Test Cable Assembly

Product categories

New Products

Product Specifications

Parameter	Specification
Product Type	VSWR Test Cable Assembly
Part Number	AX1-NM-SMAM-L
Connector Configuration	N Male to SMA Male
Characteristic Impedance	50 Ohm
Frequency Range	DC to 18 GHz
VSWR	1.25 Max at 18 GHz
Insertion Loss	1.3 dB/m Max at 6 GHz
Amplitude Stability	+/-0.05 dB at 6 GHz
Phase Stability	+/-2 degrees at 6 GHz
Dielectric Withstanding Voltage	1000 V
Insulation Resistance	5000 MOhm
Materials	Stainless Steel Beryllium Copper and PEI

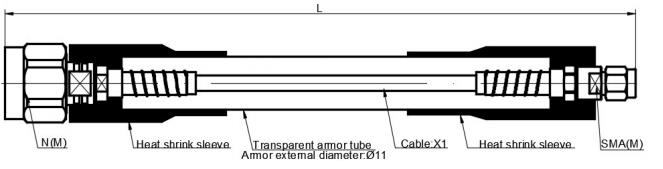

AX1-NM-SMAM-L VSWR Test Cable Assembly Specifications

Product Features

18 GHz Performance Supports RF testing across a frequency range up to 18 GHz.

N to SMA Configuration Combines N male and SMA male connectors for flexible test system integration.

Low Insertion Loss Provides insertion loss of 1.3 dB/m maximum at 6 GHz.

Stable Amplitude Maintains amplitude stability within +/-0.05 dB at 6 GHz.

Phase Stable Design Provides phase stability within +/-2 degrees at 6 GHz for repeatable RF measurements.

Applications

RF Testing Laboratory RF measurement and verification.

Network Analysis Test setups for RF network analyzers.

Wireless Equipment Testing of wireless communication systems.

Antenna Testing RF connection between test equipment and antennas.

Microwave Systems High frequency signal measurement and testing.

Frequently Asked Questions (FAQ)

Q: What connectors are used on the AX1-NM-SMAM-L test cable?
A: The AX1-NM-SMAM-L uses an N male connector on one end and an SMA male connector on the other.

Q: What frequency range does this 18 GHz RF test cable support?
A: The catalog specifies a frequency range from DC to 18 GHz with a maximum VSWR of 1.25 at 18 GHz.

Q: How stable is the amplitude of this phase stable RF cable?
A: Amplitude stability is specified as +/-0.05 dB at 6 GHz, while phase stability is +/-2 degrees at 6 GHz.
