AX1 N Male to N Male VSWR Test Cable Assembly High Stability RF Test Cable AX1-NM-NM-L

AX1 N Male to N Male VSWR Test Cable Assembly High Stability RF Test Cable AX1-NM-NM-L

AX1 N Male to N Male VSWR Test Cable Assembly with high stability RF test cable performance featuring low insertion loss and precise phase stability.

  • Part Number :

    AX1-NM-NM-L

  • Product Category :

    rf adapter & cable assembly
Inquire Now

Product Overview

AX1-NM-NM-L is a VSWR Test Cable Assembly with N male to N male connectors, 50Ω impedance, and stable RF performance up to 18GHz. It is designed for precision RF testing systems.



Product Specifications / Attributes

| Specification | Details |
| Product Type | VSWR Test Cable Assembly |
| Model Number | AX1-NM-NM-L |
| Connector Configuration | N Male to N Male |
| Connector Type | N Male Connector |
| Characteristic Impedance | 50Ω |
| Frequency Range | DC ~ 18GHz |
| VSWR | ≤1.3 @18GHz |
| Insertion Loss | ≤1.3dB/m @6GHz |
| Amplitude Stability | ±0.05dB @6GHz |
| Phase Stability | ±2° @6GHz |
| Dielectric Withstanding Voltage | 1000V |
| Insulation Resistance | 5000MΩ |

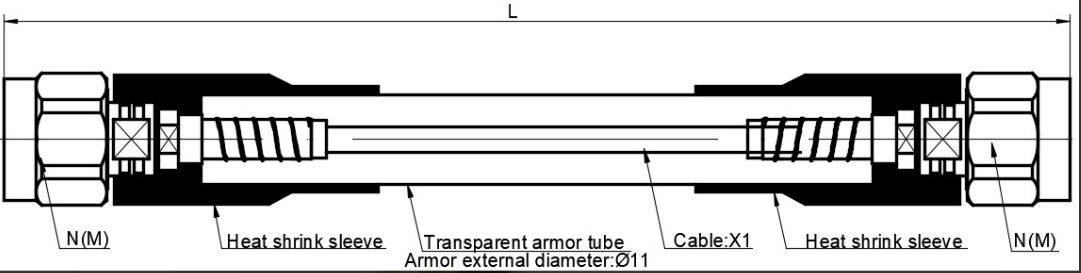

AX1-NM-NM-L VSWR Test Cable Assembly Technical Drawing

Features&Benefits

  • High Stability RF Performance Provides reliable signal transmission with stable amplitude and phase characteristics.
  • Wide Frequency Range Supports DC to 18GHz high frequency RF testing applications.
  • N Male Connector Design Ensures secure RF connection for measurement systems.
  • Low Insertion Loss Maintains ≤1.3dB/m insertion loss at 6GHz.
  • VSWR Test Cable Assembly Designed for accurate RF testing and calibration applications.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF Testing Used for VSWR measurement and signal analysis.
  • Antenna Systems Supports RF connection and testing applications.
  • Communication Equipment Suitable for high-frequency systems.
  • Laboratory Testing Used in precision RF measurement environments.
  • Microwave Systems Supports advanced RF applications.



Frequently Asked Questions (FAQ)

Q: What are the specifications of the AX1 N Male to N Male RF test cable assembly?
A: AX1-NM-NM-L features 50Ω impedance, DC to 18GHz frequency range, and stable RF performance.

Q: Why use a high stability RF cable for VSWR measurement applications?
A: High stability improves measurement consistency through controlled amplitude and phase performance.



Q: What connector configuration does the AX1-NM-NM-L VSWR cable use?
A: It uses N male to N male connectors for reliable RF system connections.
